Autopsy Saws

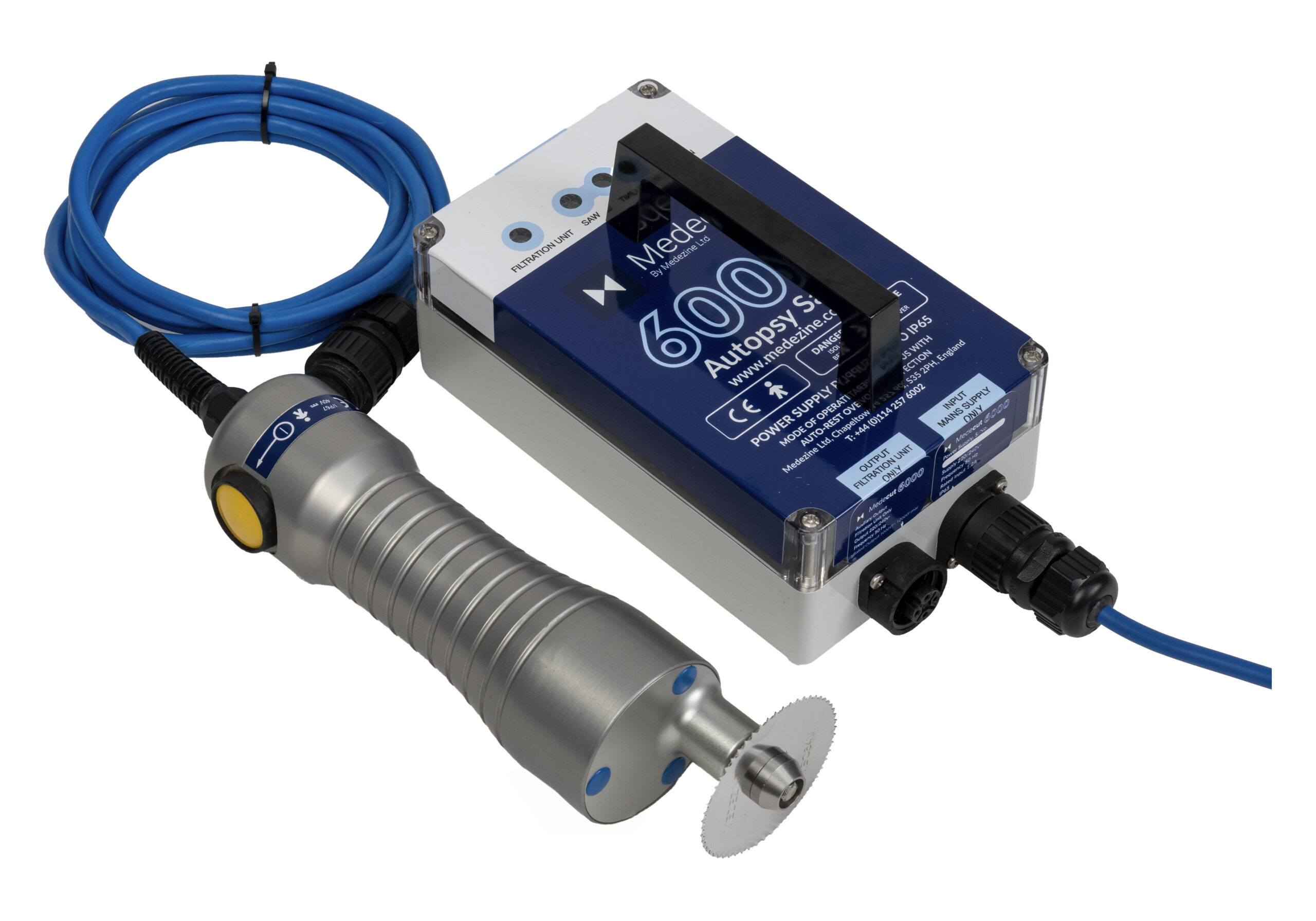

Medecut MSYSPORT Portable
With over 30 years experience, the Portable saw is the most innovative saw to date.
- Product Information:
- Key features & advantages
- Technical details
- Brochures & Manuals
With over 30 years experience, the Portable saw is the most innovative saw to date.
Single press on/off Operation
Easy to use one button press on/off button. Efficient 13200 Oscillation per minute cycle
Unique Ergonomic Design
Easy grip design reduced user fatigue
Innovative Vacuum Unit
Ergonomic Handle; balanced non tip design. Handpiece Cradle; secure storage. Plastic Vacuum; lightweight, easy clean, portable,IPX4 rated. 4 Castors;2 brake System, easy move.
Waterproof full immersion cleaning
Hand-piece hermitically sealed, watertight to IP67 rating, easy to clean and decontaminate
Low Voltage Safety
Operates on safe 40 Volts
Improved Power supply
Reduced overloading via intelligent current limiter. Increased power to hand-piece and updated safety features, easy top mounted power lead, and protected to IP65 wet environment rating. Available in 110V and 240V versions
Light weight and balanced
Hand piece professionally balanced and only weighs 1300g with flexible silicon hood for improved visibility
Unique Blade security
Comprehensive High Quality Stainless Steel Blade range with simple wrench and blade clamp-screw system. Easy blade rotation and fixation
| Transformer manufactured to: | IEC – EN60742 |
| Output | Saw 40 VDC |
| Enclosure manufactured to: | IEC529, DIN40050 |
| Protected to | IP65 |
| Protection | Electronic Current Limiting, Device Double Pole Fused |
| Constructed to | BS EN60601-1-2:2015+A1:2021 |
| Weight | 1.7kg |
| Input voltage | 230Vac or 110 Vac |
| Cable | 4.0m fitted |
| Model | MFIL6000 |
| Output | 230v UK/EU - 120v US |
| Frequency of supply | 50-60Hz |
| Mode of operation | Continuous |
| Protection against water & dust | IPX4 |
| Protection class | Class 2 |
| Input current | 7A Max |
| Motor | DC Permanent magnet |
| Speed | no load 13200 cycles per min |
| Current | no load 40Vdc 0.75amp |
| Typical load | 1.5 amps |
| Construction | Anodised Aluminium body with 5 bearing sealed mechanism |
| Protected to | IP67 |
| Noise Level | 37 dB (A) no blade |
| Vibration Value | 4.12 m/s2 |
| Weight | 1.3kg |
| 2014/30/EU – EMC Directive |
| 2006/42/EC – Machinery Directive |
| 2014/35/EU – LVD Directive |
